LANHAO LHA-3200A
CNC Panel Bender — Product Description
Zero Tool Changeover. Flexible Production. Intelligent Bending.
01 Product Overview
The LHA-3200A is Lanhao's CNC panel bender, built for manufacturers who need to move between different sheet metal jobs without manual tooling changeovers. It automatically assembles tooling segments to match each workpiece's required length, so production keeps moving as part specifications change.
Combined with intelligent CNC programming, automatic bending path optimization, and closed-loop control, the LHA-3200A is built for high-mix sheet metal production, where flexibility, efficiency, and consistent quality matter most.
02 Key Features
▸ Zero Manual Tool Changeover — Tooling segments assemble automatically to match each workpiece's required length, removing manual tool swaps and cutting setup time between jobs.
▸ Self-Developed CNC Control — An in-house CNC system supports intelligent programming, intuitive operation, and automatic bending path optimization across different workpiece geometries.
▸ Multi-Axis Servo Precision — Multi-axis servo control, a high-rigidity mechanical structure, and closed-loop accuracy control combine for precise positioning and stable, repeatable bending.
▸ Flexible High-Mix Production — Manufacturers can switch between different part specifications efficiently, without repeated manual tooling adjustments.
▸ Reduced Labor Dependency — Automation reduces manual intervention and supports more efficient continuous production.
03 Applications
The LHA-3200A processes cold rolled steel, galvanized steel, stainless steel, and aluminum, and is suitable for a broad range of sheet metal fabrication work, including:
▸ Electrical Cabinets
▸
▸ Storage Cabinets
▸
▸ HVAC Equipment
▸
▸ Kitchen Appliances
▸
It supports both customized parts and batch production.
04 Production & Automation
The LHA-3200A supports the full bending process with minimal manual intervention:
Job Programming → Automatic Tooling Preparation → Sheet Metal Forming → Repeatable Production
Its flexible configuration suits both customized production and batch manufacturing, especially where product variety is high and setup time needs to be minimized. It can also integrate with automatic loading and unloading systems, robotic handling, and intelligent production lines, extending from standalone CNC bending into a more connected, automated production environment:
▸ Automatic Loading & Unloading Integration
▸ Robotic Handling Integration
▸ Intelligent Production Line Integration
▸ Suitable for Industry 4.0 Manufacturing
05 Technical Specifications
Specifications below are for the LHA-3200A model.
CAPACITY & DIMENSIONS
|
Parameter
|
Specification
|
|
Worktable Height
|
975 mm ± 15 mm
|
|
Maximum Bending Length
|
3200 mm
|
|
Maximum Bending Size
|
3200 mm × 1500 mm
|
|
Maximum Bending Height
|
170 mm
|
|
Machine Size
|
Approx. L667 × W392 × H342 cm
|
MATERIAL & FORMING
|
Parameter
|
Specification
|
|
Maximum Bending Thickness
|
Mild carbon steel (δb ≤ 410 MPa): 2.0 mm
|
|
Minimum Material Thickness
|
0.35 mm
|
|
Min. Inner Size, Four-Side Forming
|
Approx. 200 mm × 240 mm
|
|
Min. Inner Size, Two-Side Forming
|
Approx. 200 mm
|
|
Bending Angle Range
|
0°–180°
|
|
Minimum Bending Height
|
Approx. 5 mm
|
|
Inner Bend Radius / Plate Thickness
|
Approx. 0.8–1.2
|
CONTROL & UTILITIES
|
Parameter
|
Specification
|
|
Axis Quantity
|
22
|
|
Angle Accuracy
|
Approx. ±0.5°/m
|
|
Dimensional Accuracy
|
Approx. ±0.1 mm/m
|
|
Rated Voltage
|
380 V
|
|
Air Supply Pressure
|
0.7 MPa
|
06 Company Introduction
Lanhao is a high-tech enterprise integrating product R&D, functional customization, manufacturing, and after-sales service. The company focuses on panel benders, integrated robotic arms, multi-axis intelligent CNC systems, and cloud operation and maintenance platforms.
Lanhao develops its core technologies in-house — operating software, control circuitry, mechanical structure, and bending tooling — rather than sourcing them externally. This independent R&D capability gives Lanhao direct control over machine performance, system integration, and ongoing product development, and underpins its focus on Industry 4.0 and intelligent sheet metal manufacturing.
▸ Independent R&D Capability
▸ Self-Developed CNC, Control, Mechanical Structure & Tooling
▸ Panel Bending & Automation Integration
▸ Industry 4.0-Oriented Solutions
▸ Support for Both Customized and Batch Production
07 FAQ
Are you a factory or a trading company?
We are a manufacturer specializing in panel benders and intelligent sheet metal processing solutions.
Where is your company located?
Our factory is located in Nanjing, Jiangsu Province. Visitors are welcome, and transportation from Nanjing Lukou Airport can be arranged.
What is the warranty period for the machine?
After equipment inspection and acceptance, the whole machine carries a one-year quality guarantee.
Do you provide training?
Yes. We offer on-site training at our facility as well as remote training options.
Is the LHA-3200A difficult to operate?
The panel bender is designed with an intuitive operating interface. We also provide operation manuals and training to help customers quickly become familiar with the equipment.
|
|

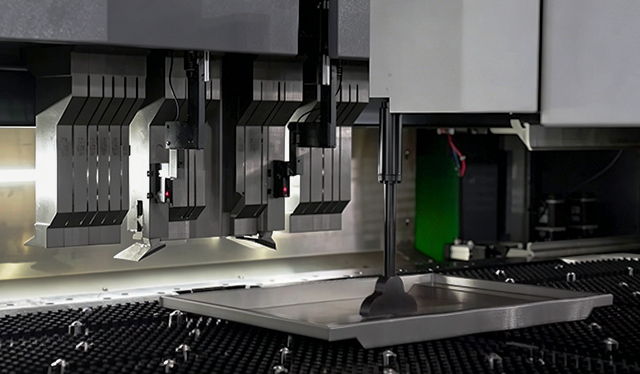

LHA-3200A Automatic Tooling Change CNC Panel Bender for Sheet Metal Images
|
